XAG P100 Agricultural Drone

It's More Than a Larger Scale

XAG P100 Agricultural Drone is crafted in structure that can separate the flying platform and task systems, integrating efficient spreading and precision spraying modules. This powerful and reliable drone is the flagship to open the new era of smart agriculture.

Efficient Spreading

280 kg per charge of a battery pack ¹
Precision Spraying

Centifulgally atomized droplet size:

60-400 μm

Flow rate (single pump): 0.3-6 L/min

(adjustable)
Safe and Reliable

Dynamic radar, intelligent

obstacle avoidance
Fully Autonomous Flight

One tap to operate on app, RTK

centimeter-level navigation
Detachable Design

Fast transform, easy to carry

Separable Design, Easier Transportation

The drone can separate its flying platform from task systems, to reduce

handling weight for easier functional switch, transportation and maintenance.

Integral Design, Sturdy and Durable

Double Safe Lock Plus Tri-proof Plug, Fast Detaching and Installation

IPX7 Water Resistance, Rinse Directly by Water

Mega-Flow Spraying, Smooth and

Precision to Every Droplet

Combine new peristaltic pumps and nozzie shutoff value wath mature

centrfugal atomisation technology, bringing an evclution of both flow

rate and efficiency, Make precision spraying go a step further.

New Generation

Peristaltic Pump

Max. flow rate: 12 L/min
Intelligent Centrifugal

Atomisation

Atomised droplet size: 60-400 μm
Efficient Plant

Protection

Max. spraying width: 10 m ²
Nozzle Shutoff Valve

No leakage during turning and transport
Quick-release

Spraying Bar

Easy to detach, install, transport

and maintain
40 L Smart Liquid

Tank

Real-time liquid level detection

Spread with Precision and High Efficiency

Adopt a brand new design for spreading disc and screw feeder.

Reshape the spread methodology of agricultural drones to greatly

enhance efficiency and accuracy.

Vertical Centrifugal

Spreading Disc

Strong wind-resistant capacity,

precision spreading
Smart Screw Feeder

Change screw feeder according to

the size of granules, providing

precision and smooth spreading
60 L Granule Container

Sensor detects the remaining granules

to avoid misses and spinning with empty

granule container
Fast Spreading

While Flying

Flight speed is up to 13.8 m/s.

A battery pack would suffice to

spread 280 kg fertilizer ³
Precisely Adjustable

Spreading Width

Easily adjust spreading width

through flight height
Quick-release,
Water-washable

The screw feeder can be quickly

detached, and is easy to clean

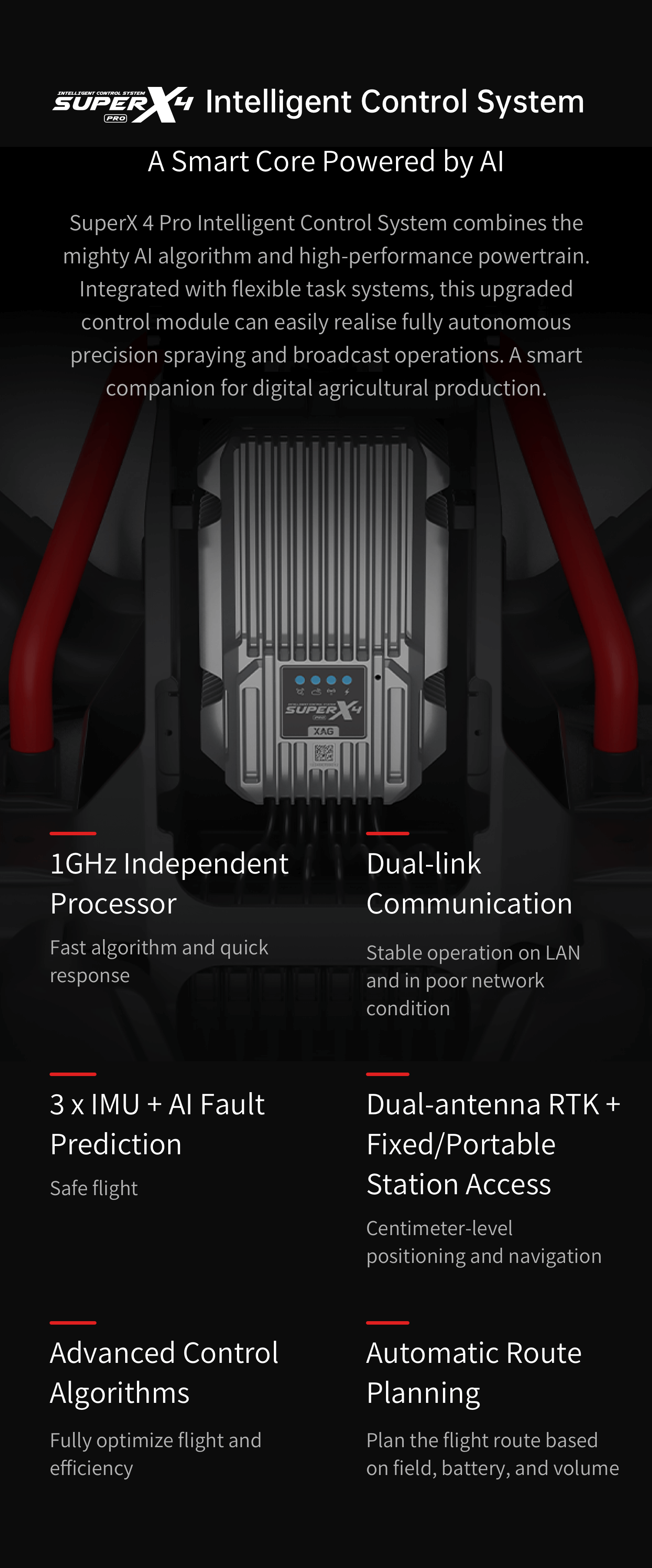

A Smart Core Powered by AI

SuperX 4 Pro Intelligent Control System combines the mighty AI algorithm and high- performance powertrain. Integrated with flexible task systems, this upgraded control module can easily realise fully autonomous precision spraying and broadcast operations. A smart companion for digital agricultural production.

1 GHz Independent Processor

Fast algorithm and quick response
Dual-link Communication

Stable operation on LAN and in poor network condition
3 x IMU + AI Fault Prediction

Safe flight

Dual-antenna RTK + Fixed/Portable Station Access

Centimeter-level positioning and navigation
Advanced Control Algorithms

Fully optimize flight and efficiency
Automatic Route Planning

Plan the flight route based on field, battery, and volume

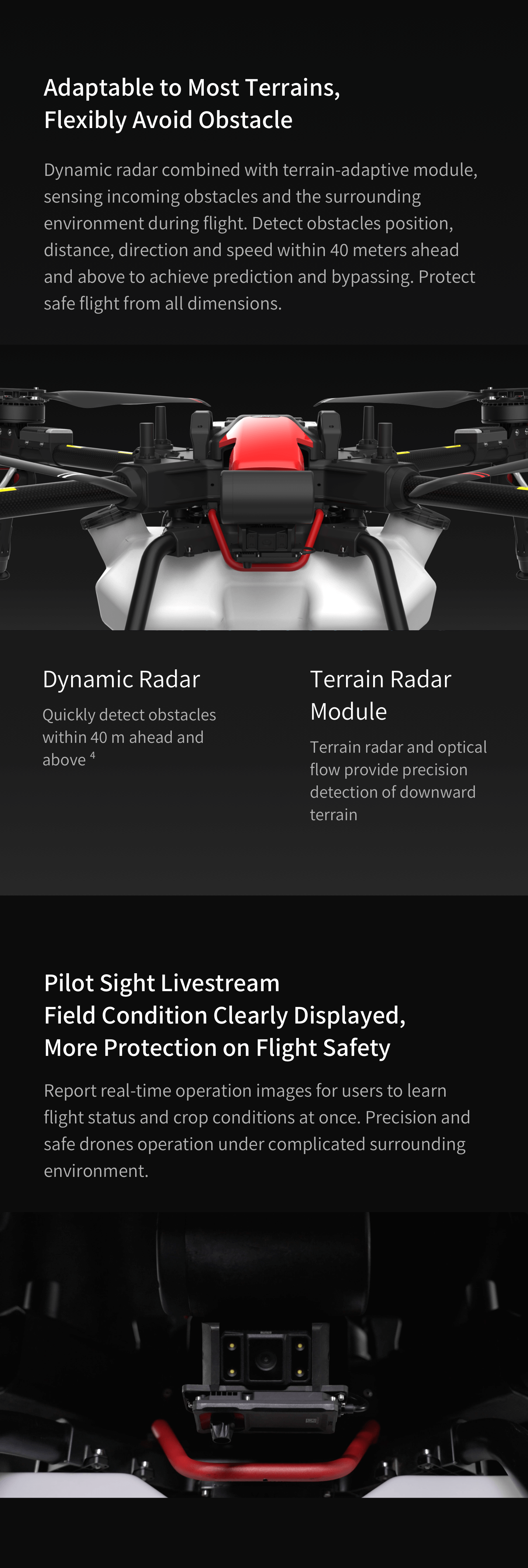

Adaptable to Most Terrains, Flexibly Avoid Obstacle

Dynamic radar combined with terrain-adaptive module, sensing incoming obstacles

and the surrounding environment during flight. Detect obstacles position, distance,

direction and speed within 40 meters ahead and above to achieve prediction and

bypassing. Protect safe flight from all dimensions.

Dynamic Radar

Quickly detect obstacles within 40 m

ahead and above ⁴

Terrain Radar Module

Terrain radar and optical flow provide

precision detection of downward terrain

Pilot Sight Livestream

Field Condition Clearly Displayed, More Protection

on Flight Safety

Report real-time operation images for users to learn flight status and crop conditions at once. Precision and safe drones operation under complicated surrounding environment.

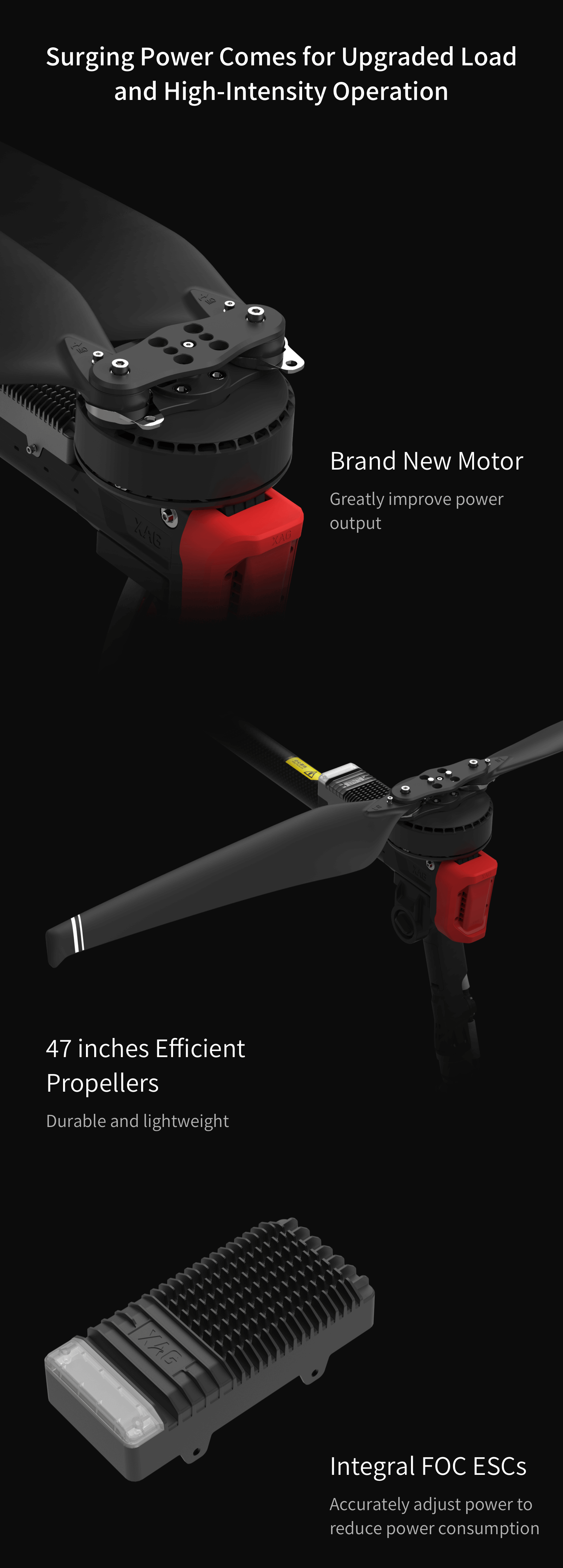

Surging Power Comes for Upgraded Load and

High-Intensity Operation

Brand New Motor

Greatly improve power

output
47 inches Efficient Propellers

Durable and lightweight
Integral FOC ESCs

Accurately adjust power to

reduce power consumption

Battery Power

Stronger, Smarter, and Safer

The all-new B13960S Smart Battery possesses bigger electric power and super charge capability.

GC4000+Auto SuperCharge Station

B13960SIntelligent SuperCharge Battery

B13960S

Intelligent SuperCharge Battery

962 Wh large capacity
11 min fully charged in water cooling tank⁵
XBMS Intelligent Battery Management SystemSelf-balancing of battery cell
New heat-resistant material with a built-intemperature sensor

CM12500P

Intelligent SuperCharger

Economical and highly efficient
2500 W rated power, 15 min SuperCharge

GC4000+

Auto SuperCharge Station

Variable frequency generator with ultra-lowfuel consumption of 0.6 L/KWh
Max. 25 batteries can be fully charged witha 15 L full tank of petrol
Small and lightweight, 31.5 kg in net weight
XBMS intelligent battery managementsystem, safe and reliable
LCD monitor allows quick access to operating status and maintenance reminder

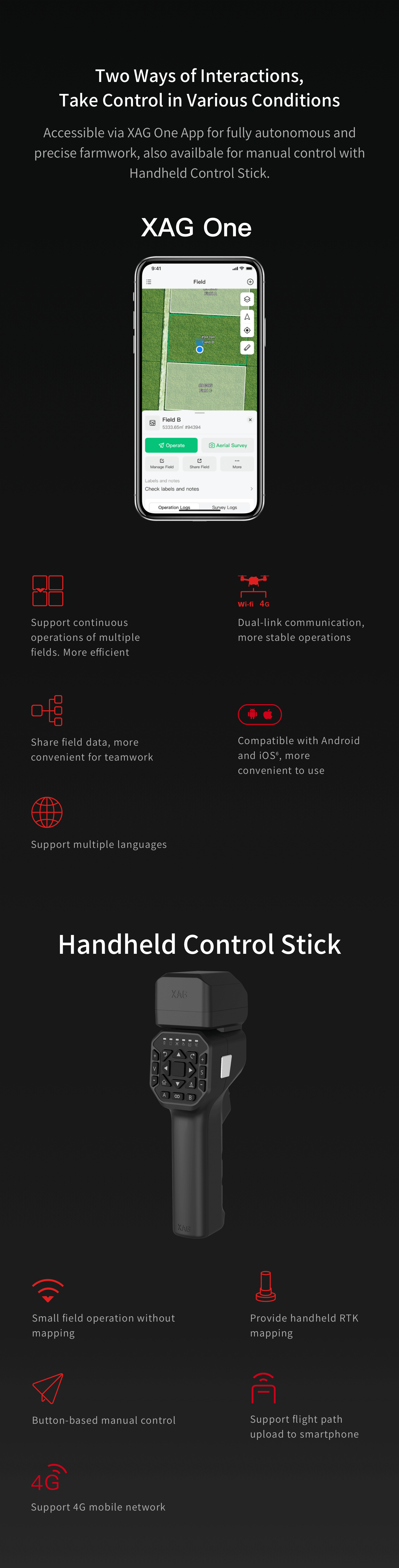

Two Ways of Interactions, Take Control

in Various Conditions

Accessible via XAG One App for fully autonomous and precise farmwork, also available for manual control with Handheld Control Stick.

XAG One

Support continuous operations of multiple fields. More efficient
Dual-link communication, more stable operations
Share field data, more convenient for teamwork
Compatible with Android and iOS⁶, more convenient to use
Support multiple languages

Handheld Control Stick

Provide handheld RTK mapping
Small field operation without mapping
Button-based manual control
Support flight path upload to smartphone
Support 4G mobile network

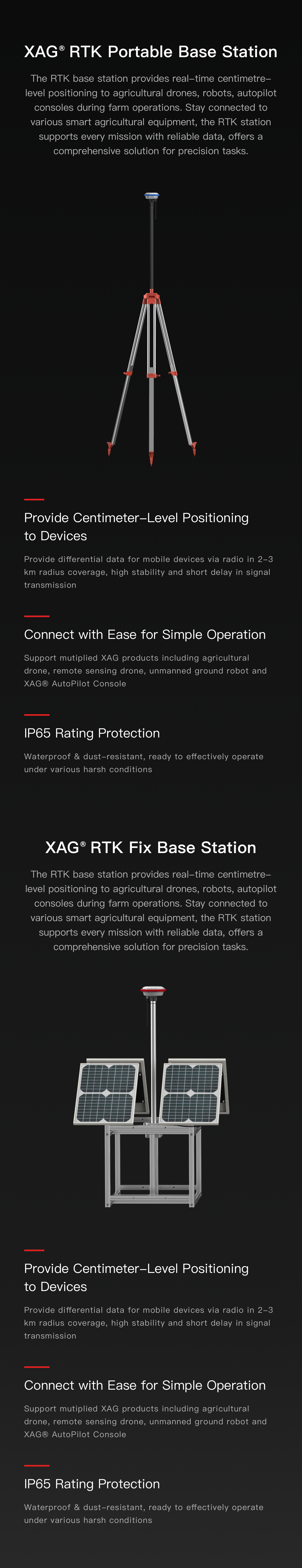

XAG RTK Portable Base Station

The RTK base station provides real-time centimeter-level positioning to agricultural drones, robots, autopilot consoles during farm operations. Stay connected to various smart agricultural equipment, the RTK station supports every mission with reliable data, offers a comprehensive solution for precision tasks.

Provide Centimeter-Level Positioning to Devices

Provide differential data for mobile devices via radio in 2-3 km radius coverage, high stability and short delay in signal transmission
Connect with Ease for Simple Operation

Support mutiplied XAG products including agricultural drone, remote sensing drone, unmanned ground robot and XAG AutoPilot Console
IP65 Rating Protection

Waterproof & dust-resistant, ready to effectively operate under various harsh conditions

XAG RTK Fix Base Station

Provide Centimeter-Level Positioning to Devices

Broadcast via more stable 3G/4G network in a wide coverage range of 50-60 km
Connect with Ease for Simple Operation

Support mutiplied XAG products including agricultural drones, remote sensing drones, unmanned ground robot and XAG AutoPilot Console to access simultaneously
IP65 Rating Protection

Waterproof & dust-resistant, ready to effectively operate under various harsh conditions

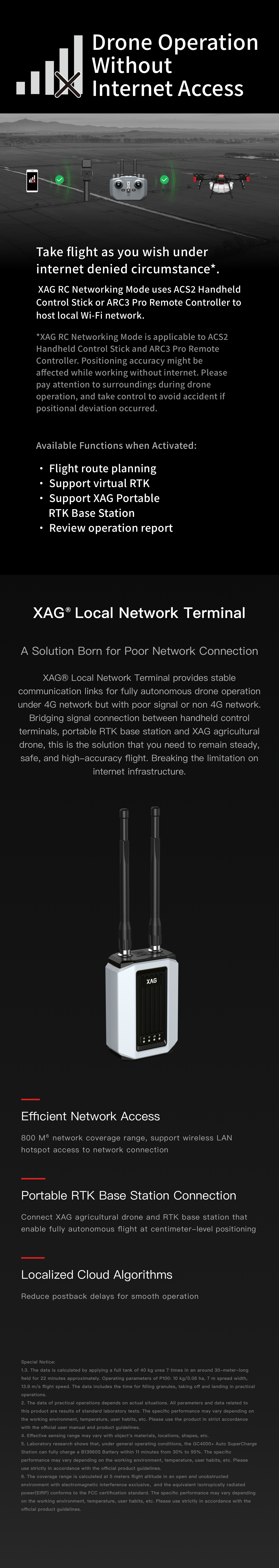

Drone Operation

Without Internet Access

Take flight as you wish under
internet denied circumstance*.

XAG RC Networking Mode uses ACS2 Handheld Control Stick or
ARC3 Pro Remote Controller to host local Wi-Fi network.

*XAG RC Networking Mode is applicable to ACS2 Handheld Control Stick and ARC3 Pro Remote Controller. Positioning accuracy might be affected while working without internet. Please pay attention to surroundings during drone operation, and take control to avoid accident if positional deviation occurred.

Available Functions when Activated:

· Flight route planning
· Support virtual RTK
· Support XAG Portable
RTK Base Station
· Review operation report

XAG Local Network Terminal

A Solution Born for Poor Network Connection

XAG Local Network Terminal provides stable communication links for fully autonomous drone operation under 4G network but with poor signal or non 4G network. Bridging signal connection between handheld control terminals, portable RTK base station and XAG agricultural drone, this is the solution that you need to remain steady, safe, and high-accuracy flight. Breaking the limitation on internet infrastructure.

Efficient Network Access

800 M⁷ network coverage range, support wireless LAN hotspot access to network connection
Portable RTK Base Station Connection

Connect XAG agricultural drone and RTK base station that enable fully autonomous flight at centimeter-level positioning
Localized Cloud Algorithms

Reduce postback delays for smooth operation

Special Notice:

1.3. The data is calculated by applying a full tank of 40 kg urea 7 times in an around 30-meter-long field for 22 minutes approximately. Operating parameters of P100: 10 kg/0.06 ha, 7 m spread width, 13.8 m/s flight speed. The data includes the time for filling granules, taking off and landing in practical operations. 2. The data of practical operations depends on actual situations. All parameters and data related to this product are results of standard laboratory tests. The specific performance may vary depending on the working environment, temperature, user habits, etc. Please use the product in strict accordance with the official user manual and product guidelines. 4. Effective sensing range may vary with object's materials, locations, shapes, etc. 5. Laboratory research shows that, under general operating conditions, the GC4000+ Auto SuperCharge Station can fully charge a B13960S Battery within 11 minutes from 30% to 95%. The specific performance may vary depending on the working environment, temperature, user habits, etc. Please use strictly in accordance with the official product guidelines. 6. The App for iOS is not available now. 7. The coverage range is calculated at 5 meters flight altitude in an open and unobstructed environment with electromagnetic interference exclusive，and the equivalent isotropically radiated power(EIRP) conforms to the FCC certification standard. The specific performance may vary depending on the working environment, temperature, user habits, etc. Please use strictly in accordance with the official product guidelines.
